Pulmonology exams in Buenos Aires City

pulmonology

Are you looking for a company that distributes equipment to perform pneumology exams? At our company, Akonic SA, we are constantly evolving to offer you state-of-the-art equipment.

Find with us the following digital equipment:

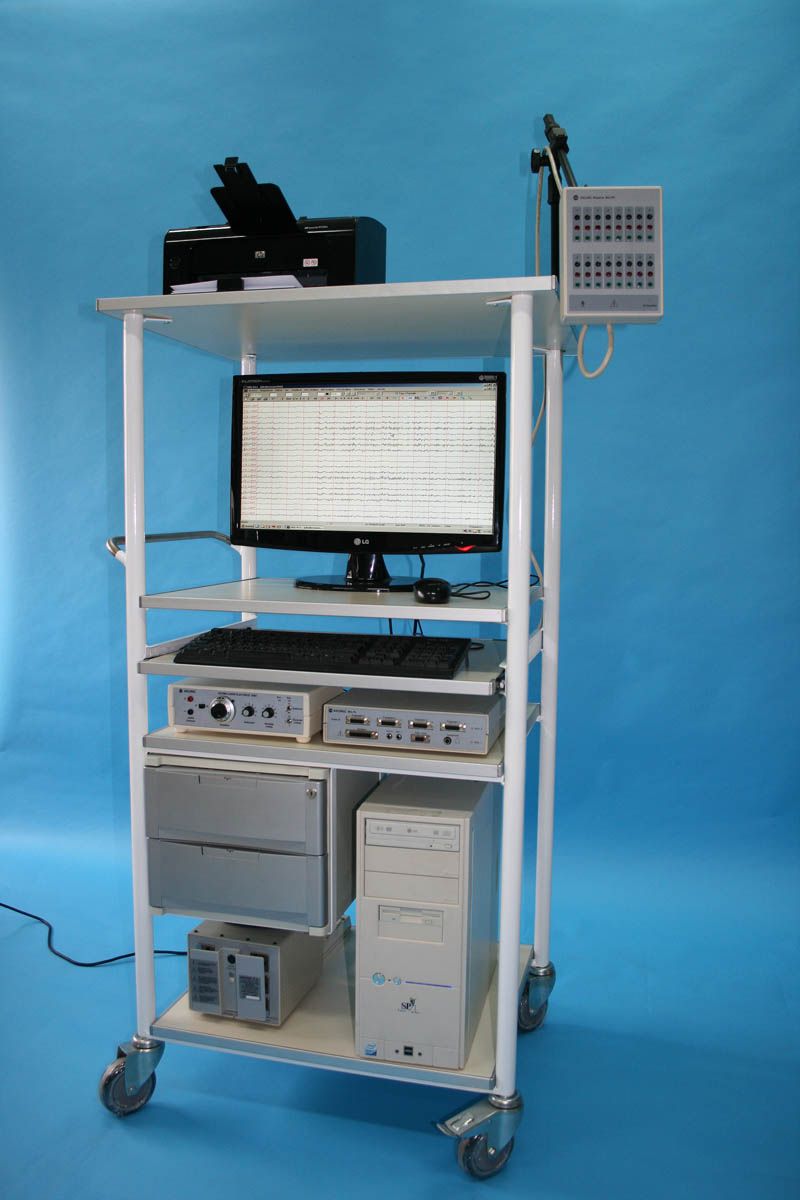

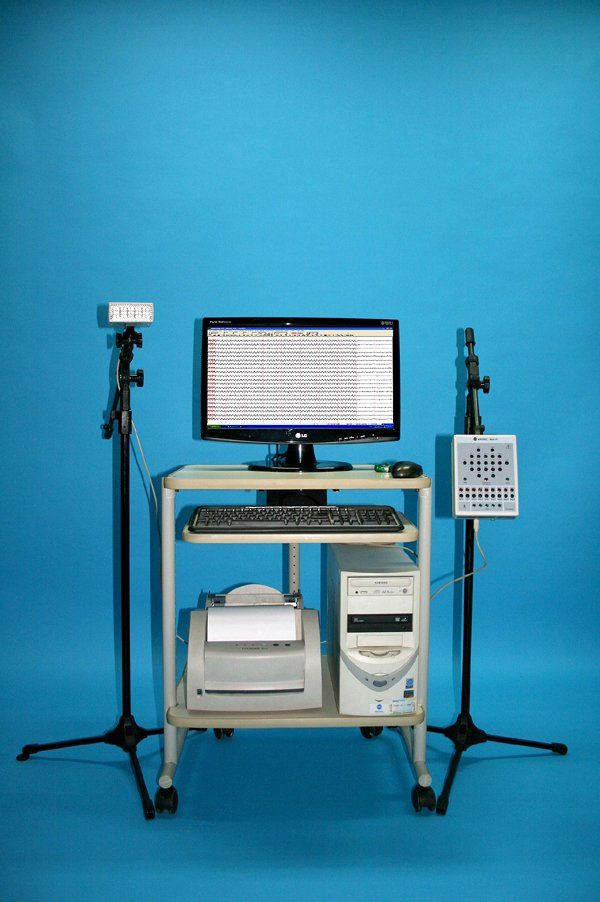

BIO-PC system

The technical specifications of the BIO-PC system are:

Security:

Electrical safety according to EN60601-1 standards.

Required operating system:

Windows XP/NT/2000/Vista/Seven/Windows 8.

System caracteristics:

Line input: 90/240 VAC @ 50/60 Hz. Fuses: 1A - type T (slow blow). Temperature: 5 - 30 °C. Relative humidity:< 50 % sin condensación.Autodiagnósticos: generador de calibración. Medición de impedancia de electrodos.Resolución A/D: 16 bits.Números de canales: 32 canales + referencia del sistema + 7 entradas de tierra.Canales de EEG:Impedancia de entrada: > 20 MOhm Hardware Low Frequency Filter: 0.5 Hz Hardware High Frequency Filter: 100 Hz Hardware Notch Filter: 50/60 Hz Digital Notch Filter: User selectable Sensitivity: 1 to 128 µV/mlow/high/m. User selectable. CMRR: > 100 dB at 50/60 Hz.

Canales EMG / EP:

Input Impedance: > 20 MOhm Low/High/Notch Filters: User selectable Hardware Low Frequency Filter (Hz): 0.15 - 0.5 - 1.5 - 5 - 10 - 30 - 100 - 300.Hardware High Frequency Filter (Hz): 10000 - 5000 - 3000 - 2000 - 1000 - 300 - 100 - 30.Hardware Notch Filter: 50/60 Hz.Sensitivity (µV): User selectable.CMRR : > 100dB at 50/60Hz.

EKG channels:

Input impedance: > 20 MOhm. Hardware low frequency filter: 0.15 Hz. Hardware high frequency filter: 25 Hz. Hardware Notch filter: 50/60 Hz. Sensitivity: 1/128 µV/mm. User selectable. CMRR: > 100 dB at 50/60 Hz.

FA, Belt1 and Belt2 channels:

Input Impedance: > 20 MOhm Hardware Low Frequency Filter: 0.07 Hz Hardware High Frequency Filter: 100 Hz Hardware Notch Filter: 50/60 Hz Digital Low/High/Notch Filters: selectable by the user. Sensitivity (max): 50 µV/mm. User selectable. CMRR: > 100 dB at 50/60 Hz.

Canal MIC:

Input impedance: > 20 MOhm. Hardware low frequency filter: 15 Hz. Hardware high frequency filter: 300 Hz. Hardware Notch filter: 50/60 Hz. Sensitivity: 1/128 µV/mm. User selectable. CMRR: > 100 dB at 50/60 Hz.

External channels (Ext1 - Ext2):

Use: oximetry / pH / CPAP pressure / other DC signals. Input impedance: 220 KOhm. Hardware low frequency filter: DC. Hardware high frequency filter: 70 Hz. Low / High / Notch digital filters: selectable by the user. Maximum input voltage: ±4 volts. Input voltage range: user selectable.

Stimulators:

Audio stimulator: click/masking - tone/masking.Checkerboard stimulator (pattern reversal).Electrical stimulator.SLD photostimulator.SLD-W photostimulator.

Self-diagnostics:

Calibration generator. Online electrode impedance measurement.

NeuroTrace - mini PC

The NeuroTrace - mini PC is a modern and effective equipment for electroencephalography, video EEG/PSG, brain topographic mapping, polysomnography and Holter studies. The NeuroTrace model was created in order to improve the quality of work and at the same time facilitate its transfer, due to its small size and low weight.

The technical specifications of the NeuroTrace - mini PC system are:

Security:

Electrical safety according to 93/42/EEC, EN60601-1, EN60601-1-1, EN60601-1-2, EN60601-1-4 and EN60601-2-26 standards. Patient isolation: 1,500 volts - optocoupled. Connectors safety (32 channels reference 7 grounds).

Required operating system:

Windows XP/Seven/Windows 8.

System caracteristics:

Powered by USB.Temperature: 5 - 30 °C.Relative humidity:< 50 % sin condensación.Autodiagnósticos: generador de calibración. Medición de impedancia de electrodos.Resolución A/D: 16 bits.Número de canales: 32 canales + referencia del sistema + 7 entradas de tierra.Canales de EEG:Impedancia de entrada: > 20 MOhm Hardware Low Frequency Filter: 0.5 Hz Hardware High Frequency Filter: 100 Hz Hardware Notch Filter: 50/60 Hz Digital Low/High/Notch Filter: User selectable Sensitivity : 1 to 128 µV/mm. User selectable. CMRR: > 100 dB at 50/60 Hz.

Auxiliary channels (1: EKG - 2: FA - 3: BELT1 - 4: BELT2 - 5: MIC):

Auxiliary channels (6: EMG1 - 7: EMG2 - 8: EMG3 - 9: EMG4):

Input Impedance: > 20 MOhm Hardware Low Frequency Filter: 3.5 Hz Hardware High Frequency Filter: 100 Hz Hardware Notch Filter: 50/60 Hz Low/High/Notch Digital Filters: Selectable by the user. Sensitivity (max): 5 µV/mm. User selectable. CMRR: > 100 dB at 50/60 Hz.

Ext1 - Ext2 channels:

Use: oximetry / pH / CPAP pressure or other DC signals. Input impedance: 50 KOhm. Low frequency filter: DC. Low/high/Notch digital filters: user selectable. Maximum input voltage: ±5 volts. Input Voltage Range: User Selectable.

Fotoestimulador SLD USB:

High brightness LEDs, fixed intensity of 90 candelas. Stimulation frequency selectable by the user from 0.5 to 30 Hz. Powered from USB port.

Fotoestimulador SLD-W:

High brightness LEDs, fixed intensity of 90 candelas. Stimulation frequency selectable by the user from 0.5 to 30 Hz wireless. Powered by a 9 volt Panasonic P-9SPA battery (Ni/Cd 120 mAh 9 volt) or similar.

Thermistor Airflow Sensor (ATS):

Power from the equipment.

Airflow Pressure Sensor (APS):

Power from the equipment.

Software:

Electroencephalography V12.Polysomnography V12.Cerebral topographic mapping V12.Electroencephalography V11.Polysomnography V11.Cerebral topographic mapping V11.Video EEG/PSG V12 / V11.Encephalographic Holter (optional hardware) only V12.

The software with which these teams work are:

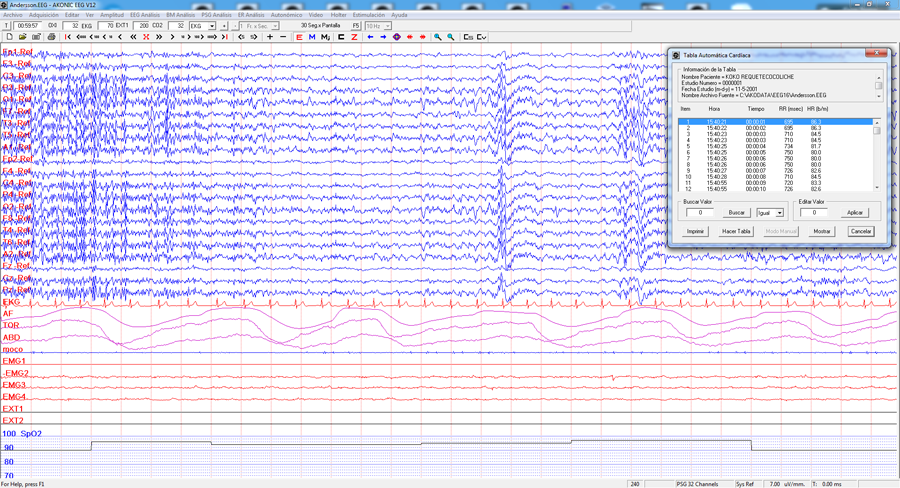

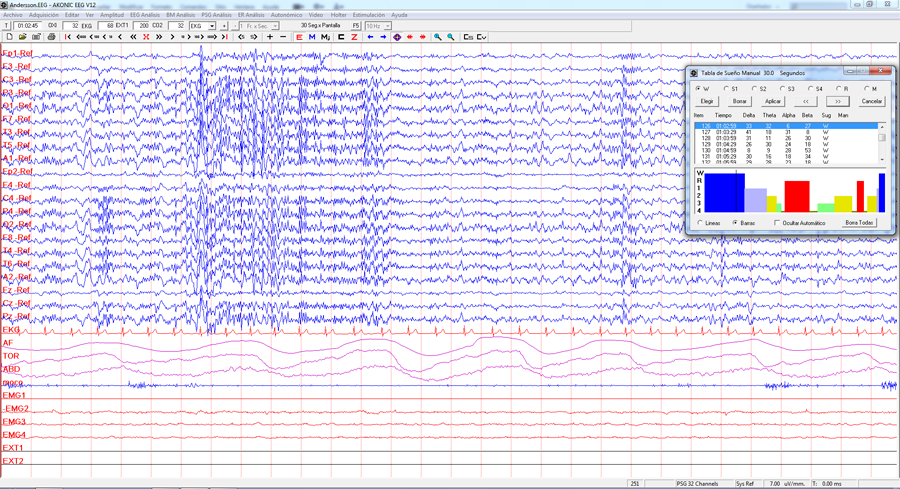

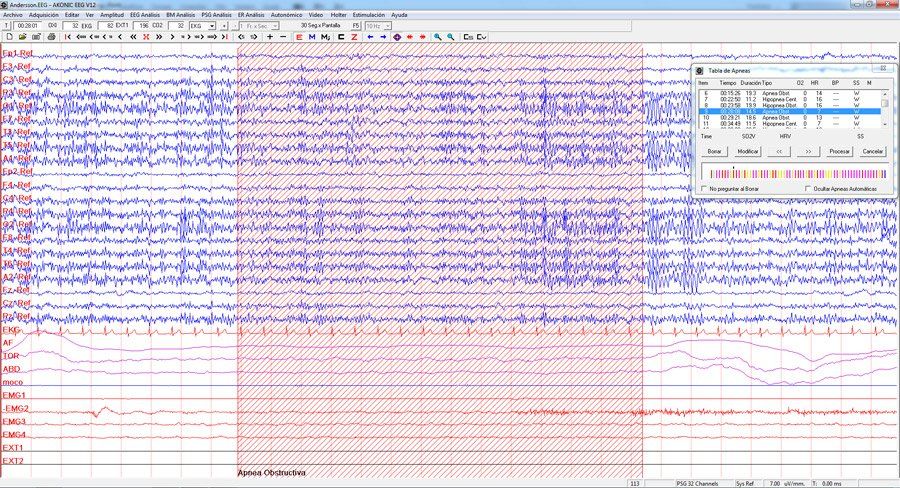

Polysomnography Software V12

Polysomnography Software V12 (PSG V12) is Windows based software for data acquisition, analysis and reporting. Their characteristics are:

Required operating system:

Windows XP/Seven/Windows 8.

Required hardware:

Sistema NeuroTrace™.

BIO-PC™ system.

Optional:

Brain topographic mapping V12.

Video EEG/PSG.

Encephalographic Holter.

Software Features:

Quick menus and easy study review.

User-defined patient status and comments.

Cursor for measuring amplitudes, peak-to-peak voltage, initial voltage, time and frequency.

High and low frequency channel-by-channel post-processing digital filters.

Paging rate and seconds per page controlled by software during log review.

Visual stimulation and auditory stimulation.

Automatic or manual analysis of PSG. Body position sensor, ambient light sensor and serial oximeter.

Piezoelectric respiratory effort sensors.

Online impedance test.

Unlimited number of user configurable mounts.

Monopolar, referential and bipolar reconstruction.

Automatic conversion to ASCII and EDF formats.

High print quality with all types of printer.

Online help.

User manual presented in .pdf format.

Technical specifications:

A/D resolution: 16 bits.

Safety tabs and connector for eletrocap.

Channel numbers: 21 EEG/EOG channels (up to 64 channels), 1 airflow channel (thermistor or pressure sensor), 2 respiratory effort channels, 6 ground inputs, 4 digital display channels, and 2 auxiliary inputs DC (oximetry, pH, CPAP pressure, etc.).

Photostimulator:

Lamp or Super Light Diods (SLD).

Optional: SLDW and wireless photostimulator with rechargeable batteries.

Software-controlled stimulation frequency: 0.5 to 30 Hz and manual.

Audioestimulador:

Click o tono (BIO-PC).

Software controlled intensities and durations.

Available applications:

Topographic brain mapping (qEEG).FFT analysis.Video digital monitoring of EEG/PSG.Event related potentials.Evoked potentials.Electromyography.Steady state.Electronystagmography.EEG ambulatory Holter.

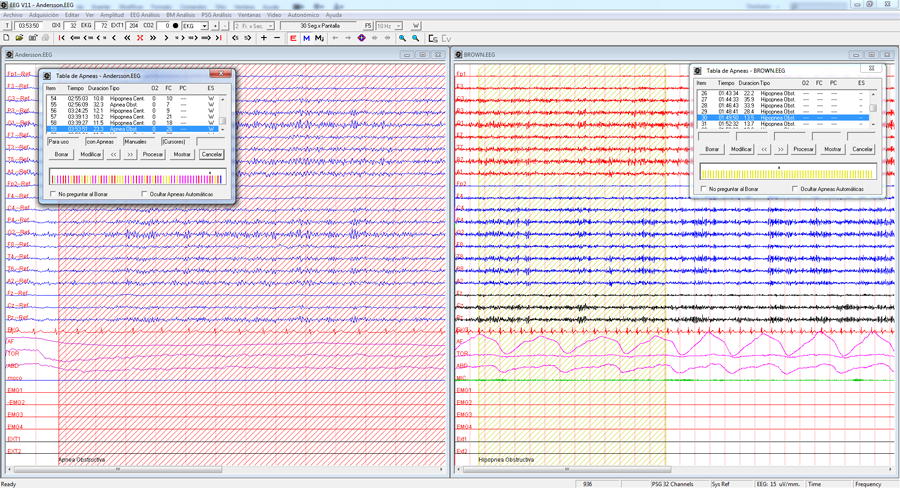

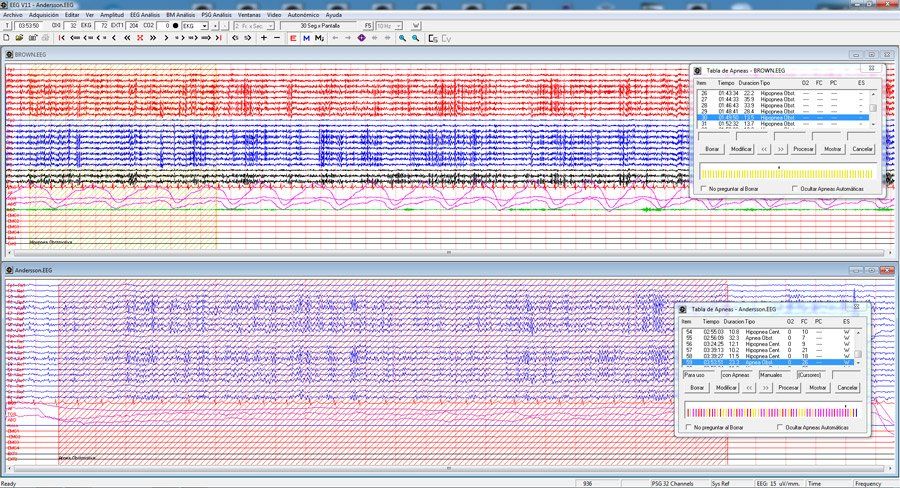

Polysomnography Software V11

Polysomnography Software V11 (PSG V11) is Windows based software for data acquisition, analysis and reporting. Their characteristics are:

Required operating system:

Windows XP/Seven/Windows 8.

Required hardware:

NeuroTrace™ system. BIO-PC™ system.

Optional:

Brain topographic mapping V11.Video EEG/PSG.

Software Features:

Quick menus and easy review of the study. User-defined patient status and comments. Cursor for measurement of amplitudes, peak-to-peak voltage, initial voltage, time, and frequency. High and low frequency channel-by-channel post-processing digital filters. Paging and seconds per page controlled by software during record review. Visual stimulation and auditory stimulation. Automatic or manual PSG analysis. Body position sensor, ambient light sensor and serial oximeter.Piezoelectric respiratory effort sensors.Online impedance test.Unlimited number of user-configurable assemblies.Monopolar, referential and bipolar reconstruction.Automatic conversion to ASCII and EDF formats.High quality printing with all types of printer.Online help.User manual presented in .pdf format.

Technical specifications:

A/D resolution: 16 bits. Safety tokens and connector for eletrocap. Number of channels: 21 EEG/EOG channels (up to 64 channels), 1 airflow channel (thermistor or pressure sensor), 2 stress channels respiratory devices, 6 ground inputs, 4 digital display channels and 2 DC auxiliary inputs (oximetry, pH, CPAP pressure, etc.).

Photostimulator:

Super Light Diods (SLD).Optional: SLDW and wireless photostimulator with rechargeable batteries.Software controlled stimulation frequency: 0.5 to 30 Hz and manual.

Audioestimulador:

Click or tone (BIO-PC). Intensities and durations controlled by software.

Available applications:

Digital EEG.Digital polysomnography with analysis.Topographic brain mapping (qEEG).FFT analysis.Digital video monitoring of EEG/PSG.Event related potentials.Evoked potentials.Electronystagmography.Steady state.EEG ambulatory Holter.

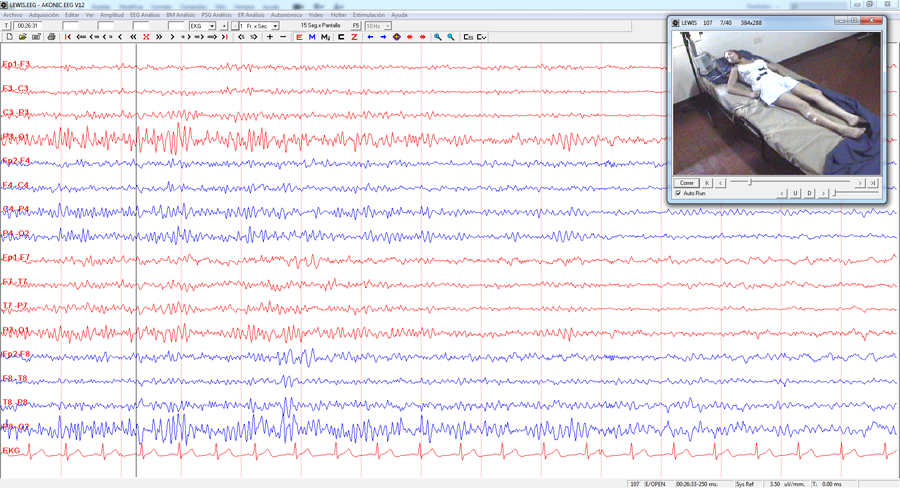

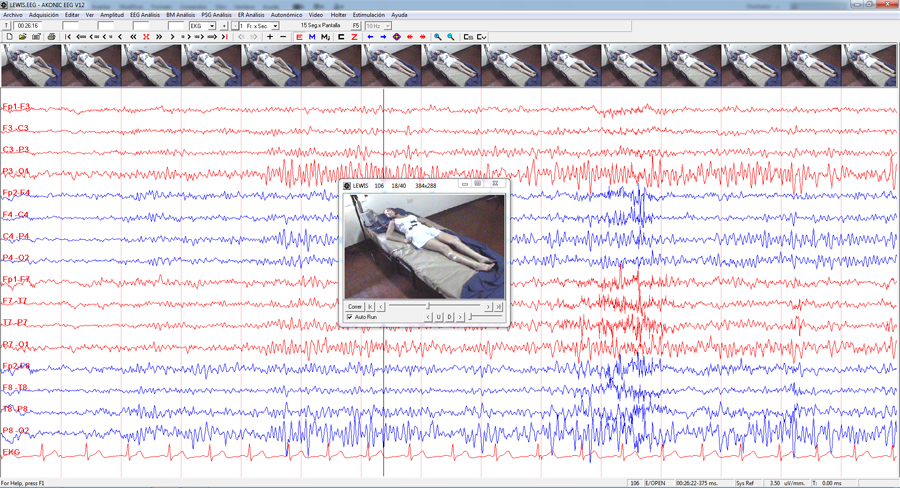

Software the video EEG / PSG V11 / V12

EEG / PSG V11 / V12 video software is Windows based multimedia software. Their characteristics are:

Required operating system:

Windows XP/Seven/Windows 8.

Software Features:

Presentation 1: in the video window. Presentation 2: on top of the layout. Frames of different sizes, expandable by the user. Frame-by-frame or continuous review. Quick video position control (beginning, end, and slider). Continuous full video review. Perfect synchronization with the studio. Selectable number of frames per second. Review at different speeds. Independent video files per page. Video recording with or without sound. Hard drive dependent capacity. Automatic review and manual.Cursor for video frame selection.Zoom, focus and movement in xyz axis by software.Video review by network.Video editable by standard programs.

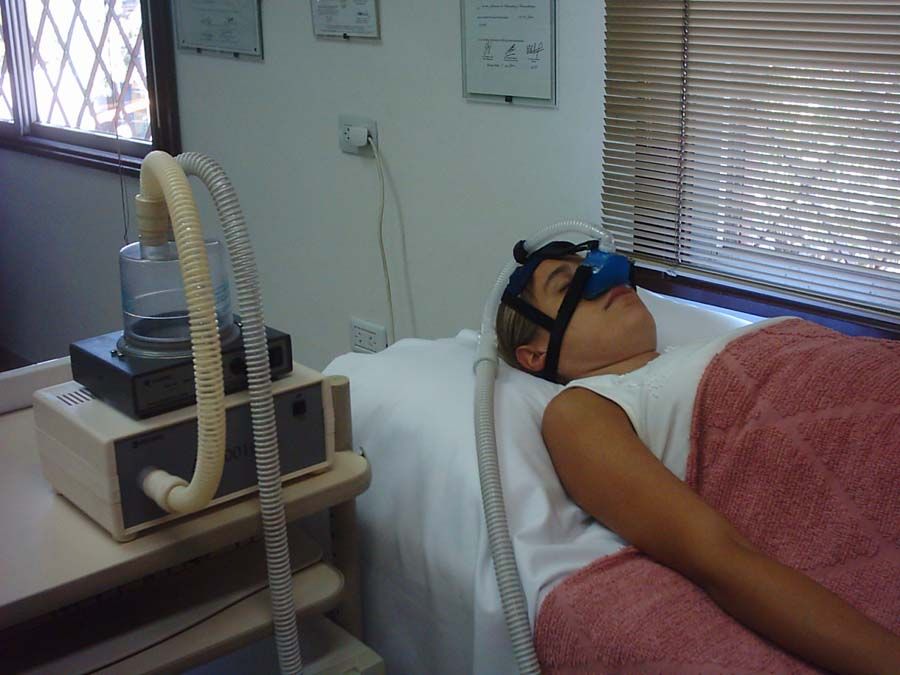

In addition, we have the following CPAP equipment:

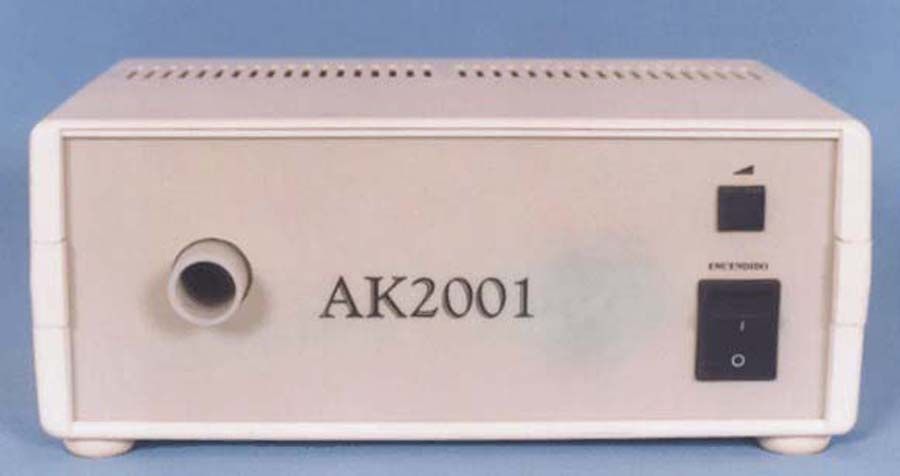

AK2001 More

The AK2001 Plus equipment is a unit for the patient. This equipment has been designed for the treatment of obstructive sleep apnea. It has precise and effective control of continuous positive pressure during sleep.

Its completely silent operation guarantees uninterrupted rest for the patient and all family members.

Features:

Totally silent.Easy to transport.Practical transport bag.Ramp reset button on the front panel.

Specifications:

Safety: electrical safety according to EN60601-1 standards. Dimensions: 11.0 cm (height) x 25.0 cm (width) x 20.5 cm (depth). Operating mode: CPAP. Pressure range: 3 to 18 cm H2O. Pressure resolution: 0.1 cm H2O. Stability: 0.3 cm H2O in 8 hours. Operating temperature: 5 - 34 °C. Humidity:< 95 % sin condensación.Rampa de presión: fija de 20 minutos.Mínima presión de rampa: 3 cm H2O no ajustable.Requerimientos eléctricos: 90/240 VAC @ 50/60.Autonomía con batería: batería de 55 A/H > 8 hours. Power consumption: < 30 watts. Fuses: 2A - type T (slow). Connection to 12 volt battery: optional.

You can download the brochure by clicking here.

AK2001 Plus PSK

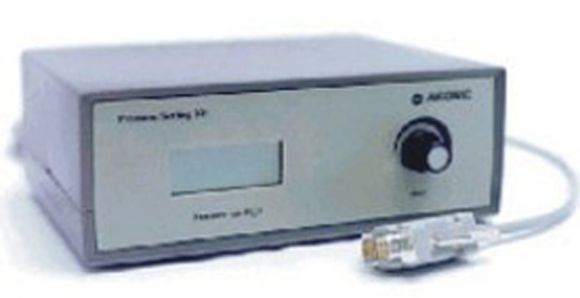

The AK2001 Plus PSK equipment is a unit for a professional, provided with an external output to the pressure controller (PSK) that has an analog output and a digital display for the sleep laboratory.

When you connect the PSK unit (Pressure Setting Kit) to the AK2001 Plus unit, it will automatically remotely command the pressure level and the digital display will allow you to view the pressure received by the patient. The PSK unit has an analog output that allows the AK2001 Plus pressure level to be displayed on your polysomnograph during the sleep study.

PSK Features:

Analog output.Digital display to present the pressure level.Use modes:PSK: remote control of the pressure level during the study.Manometer: adjustment and verification of the pressure of the patient unit.

AK2001 Plus Features:

Connection for PSK (Pressure Setting Kit).Totally silent.Easy to transport.Practical transport bag.Ramp reset button on the front panel.

AK2001 Plus Specifications:

Safety: electrical safety according to EN60601-1 standards. Dimensions: 11.0 cm (height) x 25.0 cm (width) x 20.5 cm (depth). Operating mode: CPAP. Pressure range: 3 to 18 cm H2O. Pressure resolution: 0.1 cm H2O. Stability: 0.3 cm H2O in 8 hours. Operating temperature: 5 - 34 °C. Humidity:< 50 % sin condensación.Rampa de presión: fija de 20 minutos.Mínima presión de rampa: 3 cm H2O no ajustable.Requerimientos eléctricos: 90/240 VAC @ 50/60.Autonomía con batería: batería de 55 A/H > 8 hours. Power consumption: < 30 watts. Fuses: 2A - type T (slow). Connection to 12 volt battery: optional.

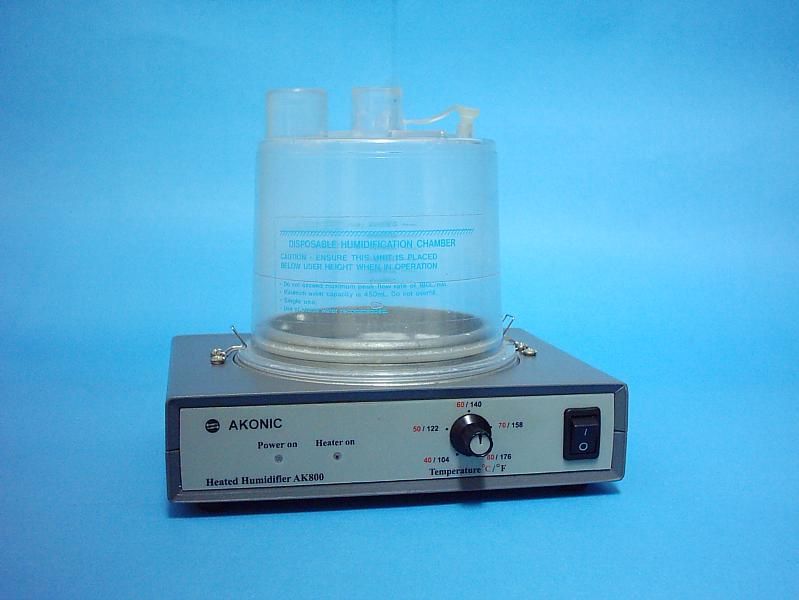

AK800

The AK800 humidifier/warmer can be connected to any CPAP. It is small, practical, light and easy to carry. In addition, it is the most efficient system, it is low cost and has excellent thermal safety.

Dimensions:

Height: 4.5 cm. Width: 18 cm. Depth: 13.5 cm.

Power consumption:

220/110 volts, 50/60 Hz and 35 VA.

Operating mode:

Adjustable by the user between 40 and 80 degrees Celsius. Front panel with indication in degrees Celsius and Fahrenheit. Automatic safety cut-off at 85 degrees Celsius. Power indicator. Heating indicator.

Composed by:

1 heater/humidifier unit.1 interlock.1 user manual.1 packing box.

Optional:

Adult chamber. Pediatric chamber. Couplings and hoses.
